Inloader AGV

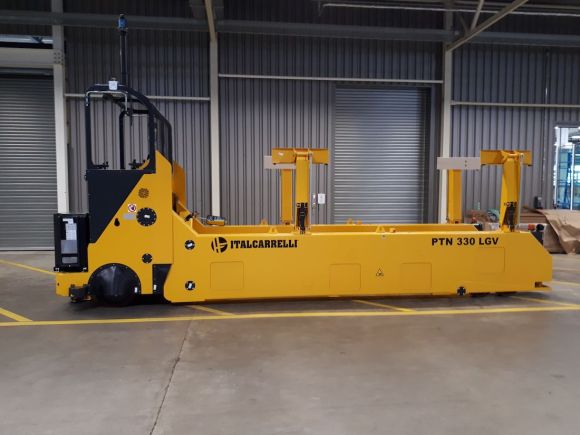

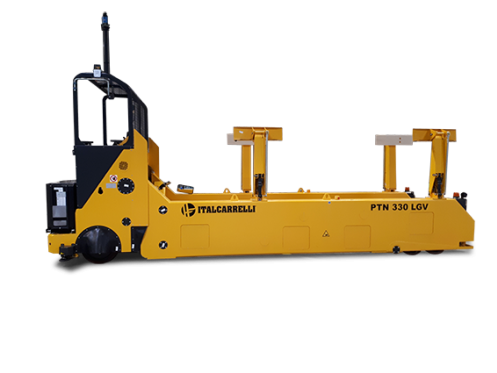

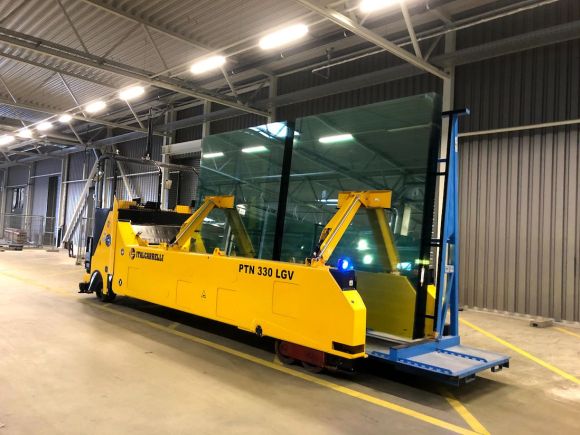

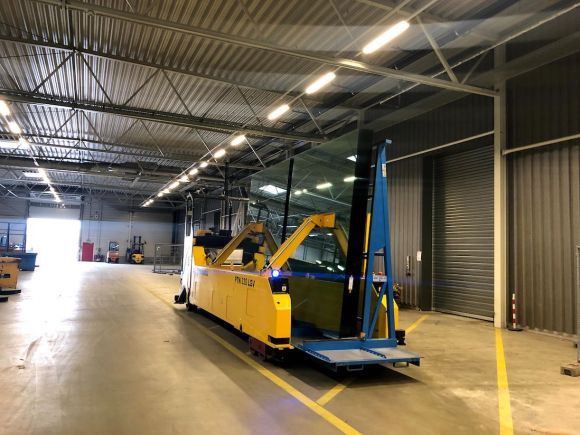

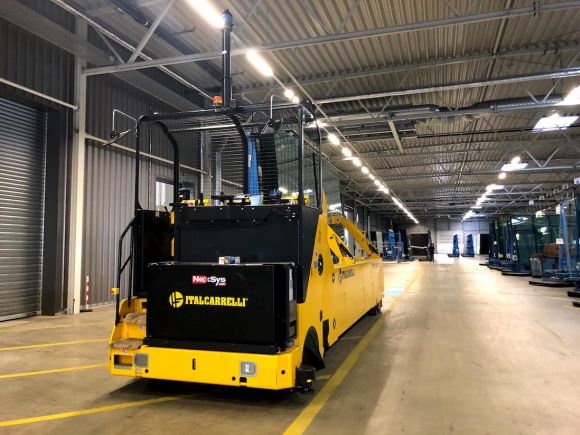

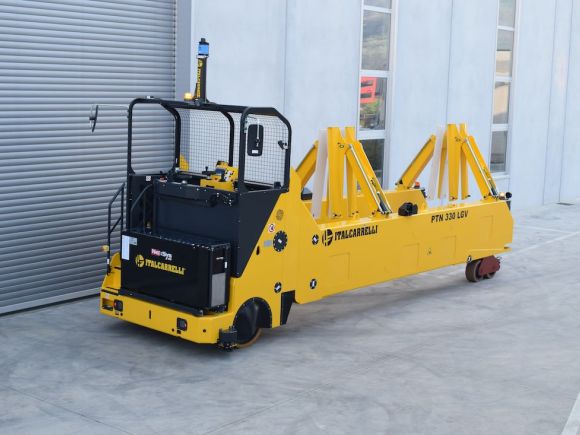

The Italcarrelli PTN self-propelled inloader AGV units are autonomous self-propelled transporters designed to handle loads positioned on trestles, with a load capacity of 33 tons and beyond.

Main usage sectors:

Request informations

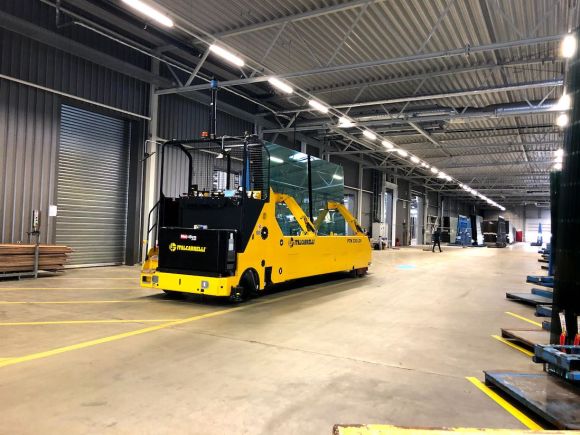

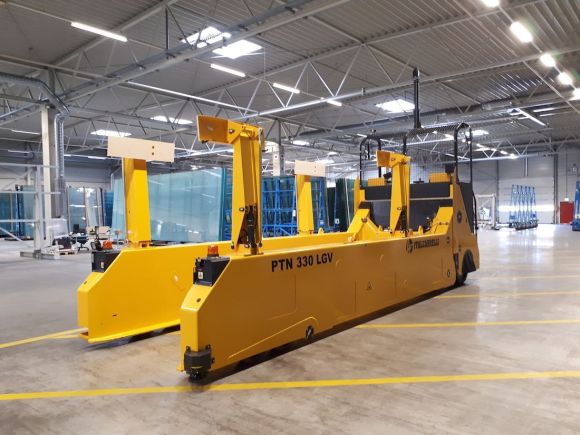

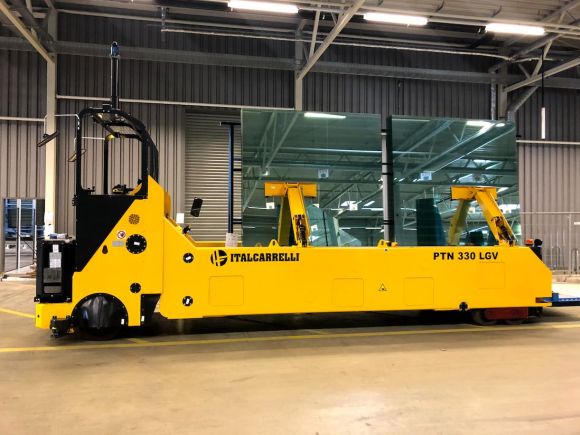

The PTN series vehicles are the optimal solutions for automated transport of loads positioned on special stillages with lateral load profiles. They are used in multiple industrial sectors. The trailer dimensions can be customized according to the size of the trestles.

Discover the Versatility of Our Inloader AGV

Technical specifications

Load capacity:

20 - 60t

Dimensions:

On request

Power supply:

Batteries, Lithium

Steering systems:

Bidirectional

Drive motors:

AC engines

Navigation technologies:

Optical, inductive, Laser, Differential GPS

Command:

Radio controlled

Type of wheels:

Superelastic for outdoor use, Vullkolan for indoor use

Safety devices:

Sicur Lift, Scan laser

Industry 4.0 ready:

Yes

Operating environment:

Indoor-Outdoor

Platform height:

Low profile

Need a customized solution?

Request a Consultation

LOAD

Load Capacity and Safety

They are vehicles usually equipped with a load capacity of 33 tons; however, upon request, versions with capacities up to 60 tons are available. They are equipped with a lifting system developed by Italcarrelli, called “Sicur-Lift” (patent pending), which ensures double safety, both mechanical and hydraulic.

MOTORIZATION

Versatility and Motorization Options

Our PTN series inloaders are highly customizable to perfectly meet specific handling needs.
We offer several motorization options designed to ensure flexibility and optimal performance according to operational requirements. The motorization options include:

Electric: with lithium batteries, they are an ideal choice for applications requiring energy efficiency and reduced emissions.

ACCESSORIES

Customization and accessories

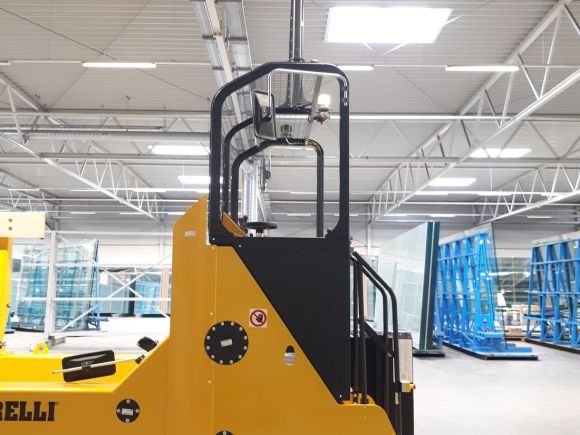

In the hybrid AGV and manual-driving versions, the driving position can be either “standing” or “seated”, with an ergonomic seat.

Automatic battery charging stations (Automatic Charging Station) and dedicated solutions for fast battery replacement (Battery Exchange Station) are available, designed to ensure operational continuity and reduce downtime.

In addition to ground-level obstacle detection sensors, it is also possible to integrate sensors dedicated to detecting overhead obstacles, increasing safety in complex environments or areas with elevated structures. A wide range of advanced load-management systems is also available: from the Rack Detection System for automated scanning to the Rack Identification System, which enables identification via barcodes, QR codes or RFID technology for complete and reliable traceability.
