Extrajumbo

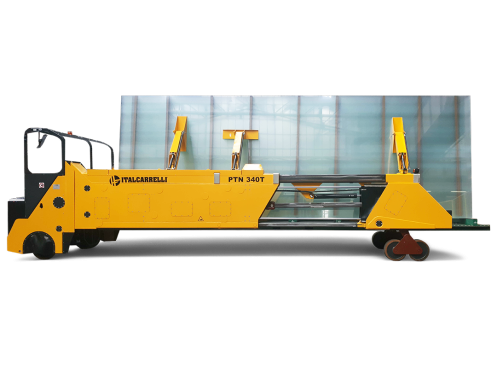

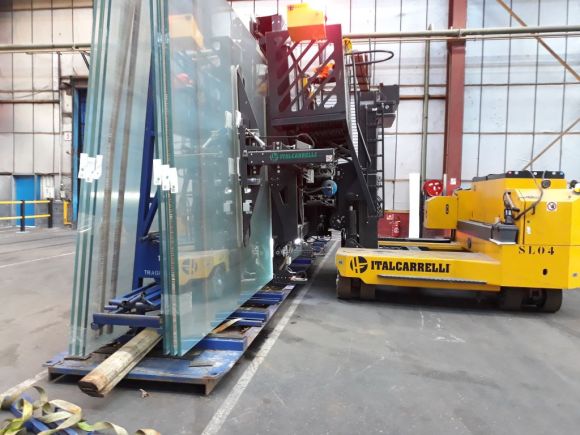

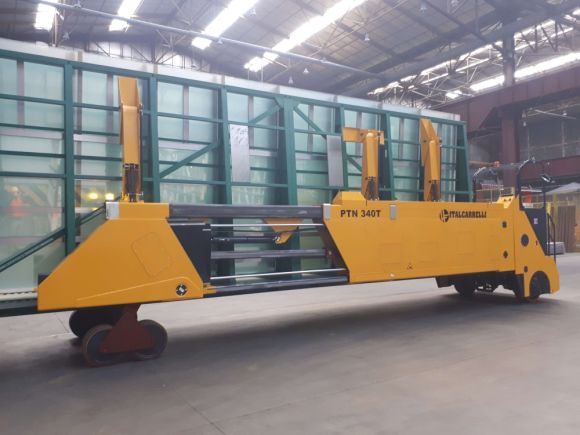

The vehicles in this series are machines for transporting glass sheets XXL Jumbo of over 9 meters.

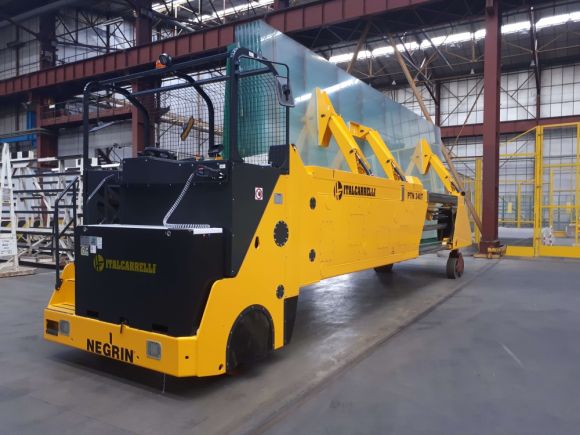

A reliable and powerful solution for the smooth and safe transportation of glass sheets within industrial facilities. These vehicles represent the epicenter of glass handling, facilitating smooth transfer from float line unloaders to the warehouse, while also offering easy operation within glass transformation specialized companies.
Technical specifications

Load capacity:

30-60 ton

Dimensions:

XXL JUMBO

Power supply:

Batteries, Diesel, Gas

Steering systems:

Bidirectional

Drive motors:

AC in electric versions, Deutz engines in diesel-gas versions

Navigation technologies:

AGV ready

Command:

Operator on board

Type of wheels:

Vullkolan for indoor use

Safety devices:

Sicur Lift, Scan laser, AI cameras

Industry 4.0 ready:

Yes

Operating environment:

Indoor-Outdoor

Platform height:

-

Need a customized solution?

LOAD

Load Capacity and Safety

They are usually equipped with a 33 tons loading capacity; however, upon request, versions with a loading capacity of 45 tons and over can be made available, for example for transporting laminated glass.

These machines are equipped with the “Sicur-Lift” (Patent Pending) lifting system developed by ITALCARRELLI, which assures a double mechanical and hydraulic safety.

MOTORIZATION

Versatility and Motorization Options

We offer several motorization options designed to ensure flexibility and optimal performance based on your preferences and operational requirements.
Motorization possibilities include:

  • Diesel Engines: with particulate filter, ideal for applications requiring reliable power and increased torque.
  • LPG Version: provide a more environmentally friendly solution, reducing emissions and ensuring efficient operation.
  • Electric: with lead-acid, pure lead, or lithium batteries are an ideal choice for applications requiring energy efficiency and emission reduction.
ACCESSORIES

Customization and accessories

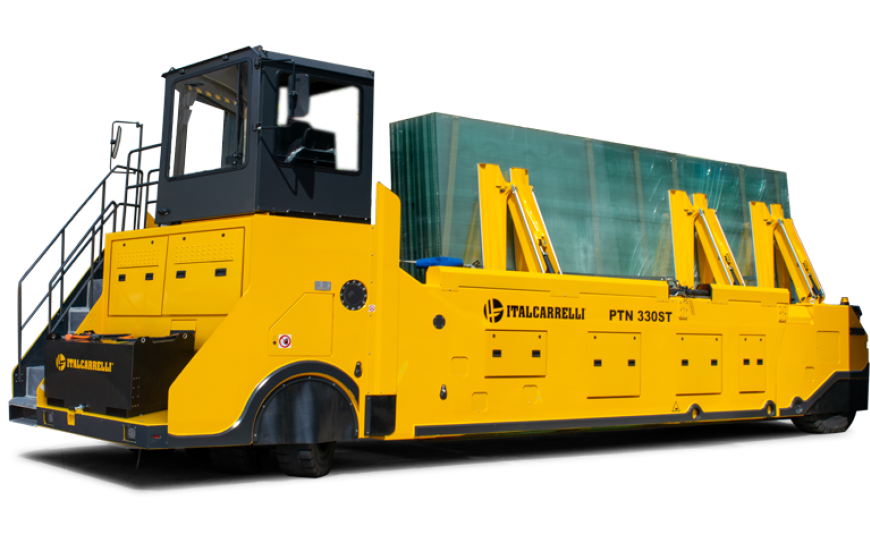

Driving positions can be of “standing” type, with fast access operator platform, or of “seated” operator type provided with an ergonomic seat. Customizable versions are also available: e.g. with closed cabin; heating and air conditioning system; double controls for forward and reverse run; driving position with rotating seat in order to increase the visibility of the operator during the driving of the transport means.

Optional devices are also available, such as the rain-proof cover, ultrasound sensors to slow down the machine automatically in presence of obstacles, video cameras, special equipment for fastening the glass on the rack; and systems to change the width of the loading profiles hydraulically in order to allow clamping of several types of racks.

GENERAL

Overview of Extrajumbo

Sicur Lift

Patented lifting system with dual safety, both hydraulic and mechanical.

Obstacle detection sensor

Scan-laser with programmable areas with slowdown and automatic stop function.

AC motor

Brushless to increase reliability and reduce maintenance costs.

LED lights

Indicate the running direction.

Replaceable batteries

Battery change preparation via crane or forklift.

Lifting trailer

Patented lifting system with dual safety, both hydraulic and mechanical.

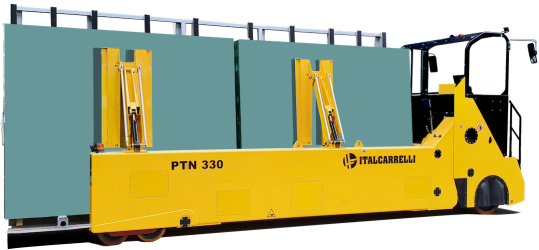

Glass locking clamp

Hydraulically operated, they secure the glass on the rack during transportation.

Mobile front guide panel

Mobile on the right/left side to ensure the operator's better visibility.

Telescopic trailer

Extendable trailer for lifting XXL Jumbo racks
